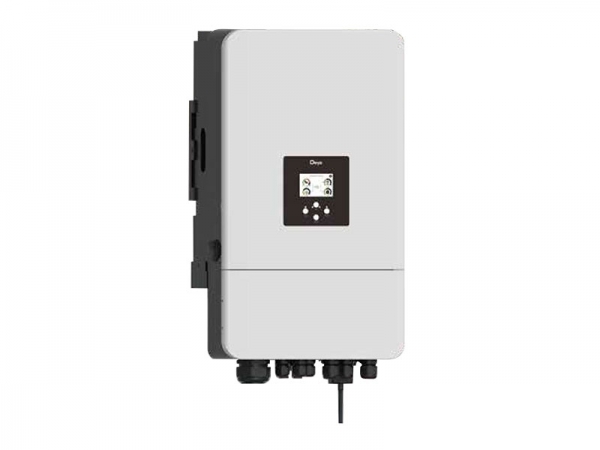

Three Phase Hybrid Inverter
SUN-5/6/8/10/12K-SG0
- Direct supply from the manufacturer
- Order phone：+86-17625817768
- E-mail：sales@pandaess.com
- Datasheet
Technical Data
| Model |
SG04LP3 LP3-EU-SM2 |
SUN-6K-SG05 LP3-EU-SM2 | SUN-8K-SG05 LP3-EU-SM2 | SUN-10K-SG05 LP3-EU-SM2 | SUN-12K-SG05 LP3-EU-SM2 | |||||
| Battery Input Data | ||||||||||
| Battery Type | Lead-acid or Lithium-ion | |||||||||
| Battery Voltage Range(V) | 40-60 | |||||||||
| Max.Charging Current(A) | 120 | 150 | 190 | 210 | 240 | |||||
| Max.Discharging Current (A) | 120 | 150 | 190 | 210 | 240 | |||||
| ExternalTemperature Sensor | Yes | |||||||||
| Charging Curve | 3Stages/Equalization | |||||||||
| Charging Strategyfor Li-lon Battery | Self-adaption to BMS | |||||||||
| PV String Ihnput Data | ||||||||||
| Max.DCInput Power(W) | 6500 | 7800 | 10400 | 13000 | 15600 | |||||
| Rated PVInput Voltage(V) | 550(160-800) | |||||||||
| Start-upVoltage(V) | 160 | |||||||||
| MPPTVoltage Range(V) | 200-650 | |||||||||
| Full Load DCVoltage Range(V) | 250-650 | 350-650 | ||||||||
| PVInput Curent(A) | 20+20 | |||||||||
| Max.PVIsc(A) | 30+30 | |||||||||
| No.of MPPTrackers | 2 | |||||||||
| No.of Strings per MPPTracker | 1+1 | |||||||||
| ACOutput Data | ||||||||||
| RatedACOutput Active Power(W) | 5000 | 6000 | 8000 | 10000 | 12000 | |||||
| MaxACOutput Active Power (W) | 5500 | 6600 | 8800 | 11000 | 13200 | |||||
| ACOutput Rated Current(A) | 7.6/7.3 | 9.1/8.7 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | |||||
| Max.ACOutput Current (A) | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/16 | 20/19.2 | |||||
| Max.Three-phaseUnbalancedOutput Current(A) | 11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 | |||||
| MaxOutput shortcircuit current (A) | 75 | |||||||||
| Max.ContinuousACPassthrough(A) | 45 | |||||||||
| Peak Power (offgrid) | 2time of rated power,10S | |||||||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 agging | |||||||||
| Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380,230/400Vac | |||||||||
| GridType | Three Phase | |||||||||
| TotalHarmonics Current Distortion(THDi) | <3%(of nominal power) | |||||||||
| DCCurrent Injection | <0.5%In | |||||||||
| Efciency | ||||||||||
| Max Effciency | 97.60% | |||||||||
| Euro Efficiency | 97.00% | |||||||||
| MPPTEficiency | 99.90% | |||||||||
| Protection | ||||||||||
| Integrated |
Anti-islanding Protection,PV String Input Reverse Polarity Protection, Insulation Resistor Detection,Residual Current Monitoring Unit,Output Over Current Protection, Output Shorted Protection |
|||||||||
| Surge Protection | DCType lI/ACTypelII | |||||||||
| Over Voltage Category | DCTypelI/ACTypeII | |||||||||
| Certifcations and Standards | ||||||||||
| Grid Regulation |
VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI021,EN50549-1, G98,G99,C10-11,UNE217002,NBR16149/NBR16150 |
|||||||||
| Safety/EMCStandard | IEC/EN61000-6-1/2/3/4,IEC/EN62109-1,IEC/EN62109-2 | |||||||||
| General Data | ||||||||||
|
Operating Temperature Range(℃) |
-40 to+60℃,>45°℃ Derating | |||||||||
|
Cooling |
Smart Cooling |
|||||||||
|
Noise(dB) |
≤45 dB |
|||||||||
|
Communication with BMS |
RS485;CAN |
|||||||||
|
Weight (kg) |
28 |
|||||||||
|
Cabinet Size (WxHxDmm) |
388×656×264(Excluding Connectors and Brackets) |
|||||||||
|
Protection Degree |
IP65 |
|||||||||
|
Installation Style |
Wall-mounted |
|||||||||
| Warranty | 5Years(10Years Optional) | |||||||||
Product advantages
