Balcony Energy Storage
- Direct supply from the manufacturer
- Order phone：+86-17625817768
- E-mail：sales@pandaess.com
- Datasheet
|
|

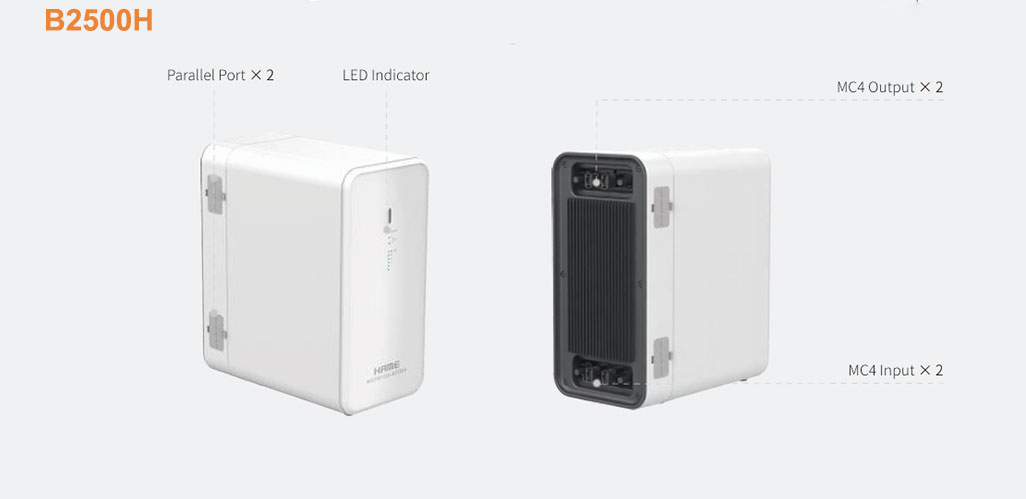

Model | B2500H |
| GENERAL | Capacity | 2240Wh |
| Cell Chemistry | LiFePO4 | |
| Lifecycle | 6000+ Cycles to 80% Capacity | |
| Storage Temp. | 14℉-113℉(-10℃-45℃) | |
| Operating Temp. | 14℉-104℉(-10℃-40℃) | |
| Material | ABS+PC/Metal | |
| Weight | 20±0.5kg | |
| Dimensions | 295*179*350mm | |
| Battery Management System | OVP,UVP,OCP,SCP,OTP,UTP,etc | |
| Wireless | BT5.2+WIFI2.4G | |
| MC4*2 PV INPUT | Power | 500W*2 Max |
| Voltage Range | 12V-59 V | |
| Mas. Input Current | 10A | |
| MC4*2 OUTPUT | Power | 400W*2 Max |
| Voltage Range | 42V-50.4V | |
| Max.Output Current | 19.04A |

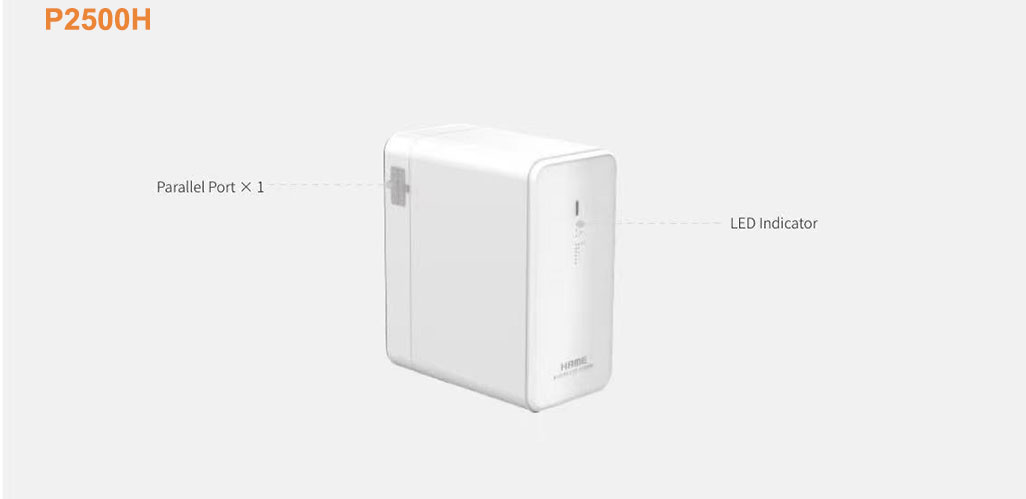

| Model | P2500H | |
| GENERAL | Capacity | 2240Wh |
| Cell Chemistry | LiFePO4 | |
| Nominal Current | 50A | |
| Lifecycle | 6000+ Cycles to 80% Capacity | |
| Storage Temp. | -4℉~140℉(-20℃~60℃) | |
| Operating Temp. | 32℉~122℉(0℃~50℃) | |
| Material | ABS + PC /Metal | |
| Weight | 18土0.5kg | |
| Dimensions | 295*175*350mm | |
| Battery Management System | OVP,UVP,OCP, SCP,OTP, UTP,etc. | |
| INPUT | Battery Voltage Range | 44.8V |
| Charge Voltage | 52.5V | |
| Charge Current | 50A | |
| OUTPUT | Discharge Current | 100A |
| DoD | 90% | |
| Datasheet | EZHI | |
| Model | EZHI |
| Region | EMEA |
| PV Input | |
| Maximum input power | 600W×2 |
| Operating voltage range | 12V-60V |
| Maximum input voltage | 60V |
| MPPT voltage range | 12V-48V |
| Start-up voltage | 18V |
| Maximum input continuous current | 17A×2 |
| Isc PV | 25A×2 |
| AC Input and Output (on-grid Port) | |
| Grid type | Single-phase |
| Nominal AC voltage(1) | 230V |
| Nominal AC frequency(1) | 5OHZ |
| Default output apparent power(2) | 800VA |
| Maximum input and output continuous power | 1200VA |
| Maximum input and output continuous current(3) | 5.22A |
| Power factor range | >0.99(+/-0.8adj.) |
| EPS Switch Time | 10ms |
| AC Input and Output (off-grid Port) | |
| Grid type | Single-phase |
| Nominal AC voltage | 230V |
| Nominal AC frequency | 5OHZ |
| Maximum output continuous power | 1200VA |
| Peak output apparent power | 1800VA,10s |
| Maximum input continuous power | 2400VA |
| Maximum output continuous current | 5.22A |
| Maximum input continuous current | 10.43A |
| Battery Input/Output(Battery Port) | |
| Nominal input/output voltage range | 40-60VDC |
| Nominal battery voltage | 51.2V |
| Maximum Charge Power(4) | 2400VA |
| Communication Ports | CAN |
| Maximum Continuous Discharge Power | 1200VA |
| Peak Discharge Power | 1800VA,10s |
| Maximum output continuous current | 27A |
| Maximum input continuous current | 40A |
General Specifications
| Dimensions W/H/D | 341mm×260mm×47mm |
| Weight | 7.1KG |
| Maximum Efficiency | 96.2% |
| Operating Ambient Temperature Range | -40℃-65℃ |
| Storage Temperature Range |
-40℃-85℃ |
| Ingress Protection | IP67 |
| Relative Humidity | 10%-90% |
| DC Connector Type | Stäubli MC4 PV-ADBP4-S2&ADSP4-S2 |
| Cooling | Natural Convection-No Fans |
| Maximum Altitude | <2000m |
| Pollution Degree Classification | PD3 |
| Overvoltage Category | OVC II For PV and Battery Input Circuit, OVC IIl For Mains Circuit |
| Features | |
| Communication | Built-in Wi-Fi and Bluetooth |
| Energy Management | AP EasyPower APP |
| Warranty | 12 Years Standard |
| Compliances |
|
| Safety, EMC & Grid Compliances | EN 62109-1/-2; EN 62477-1; EN IEC 61000-6-1/-2/-3/-4; EN 62920; VDE-AR-N 4105 |
(1)The nominal voltage/frequencyrange may vary based on local requirements.
(2)The default output power is 800VA and it is adjustable between 0-1200VA through APPplease follow the local regulation.
(3)lt is the ratio ofmax, outputapparent power to nominal AC voltage.(4)The maximum power can be utilized for charging from both PVand AC port.
Product advantages
