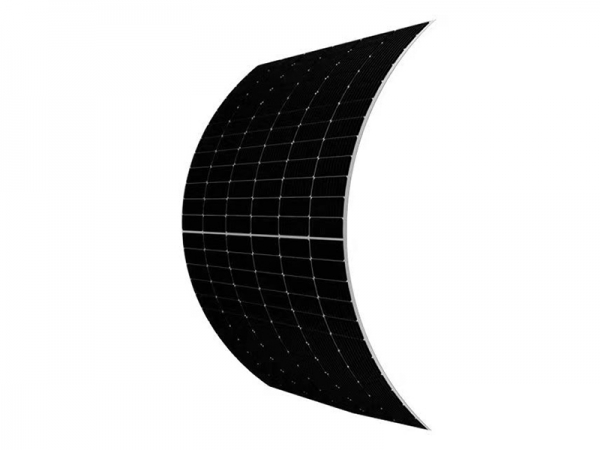

Flexible Module
- Direct supply from the manufacturer
- Order phone：+86-17625817768
- E-mail：sales@pandaess.com
- Datasheet

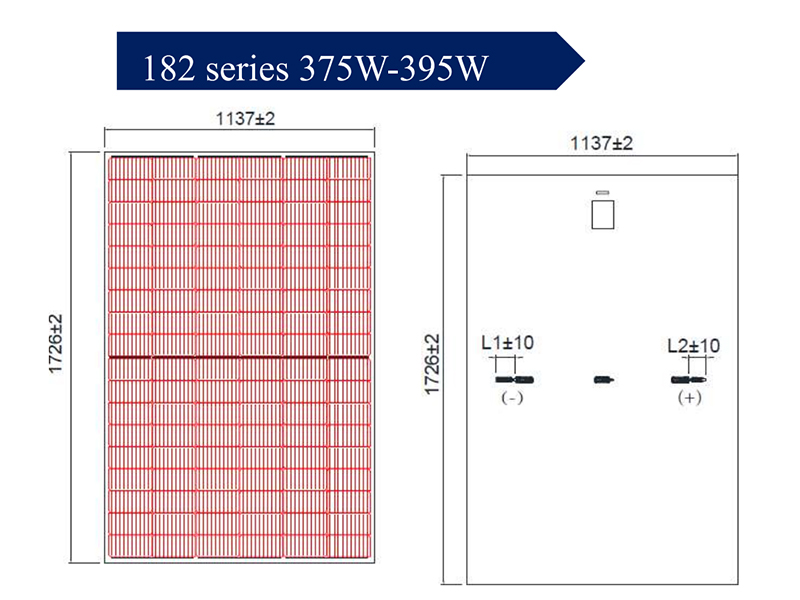

Mechanical Specifications
|
Extermal Dimension |
1726mm*1137mm | ||
| Type |
Basic Version |
Enhanced Version |
High Performance Version |
| Thickness |
3.0mm |
3.3mm |
3.6mm |
| Weight |
6.5kg |
7.6kg |
8.8kg |
|
Solar Cell |
Mono crystalline182*91mm, 108 (6*18) | ||
|
Frame |
/ | ||
|
GLASS |
/ | ||
|
Junction Box |
IP68,3diodes, MC4 compatible | ||
|
Ourput Cables |
4.0mm2(IEC),300mm(+)/300mm(-)or Customized Length | ||
Temperature characteristic
|
Pmax Temperature Coefficient |
-0.35%/* C |
|
Voc Temperature Coefficient |
-0.26%/* C |
|
Isc Temperature Coefficient |
+0.047%/* C |
|
Operating Temperature |
-40~+85* C |
|
Nominal module operation temperature |
45±2*C |
Package
|
Packing Unit |
40HQ |
17.5m platform truck |
|
PCS/CTNS |
68 |
68 |
|
Qty of Package |
24 |
36 |
|
PCS/Packages |
1632 |
2448 |

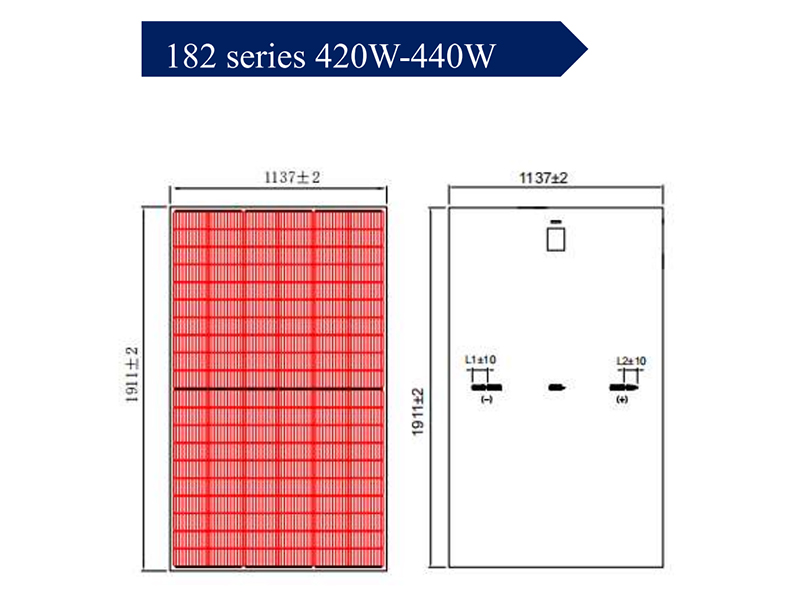

Mechanical Specifieations
|
Extcrmal Dimension |
1911mm*1137mm | ||
|
Version |
Basic Version |
Enhanced Version |
High Performance Version |
|
Thickncss |
3.0mm |
3.3mm |
3.6mm |
|
Weight |
7.3kg |
8.5kg |
9.8kg |
|
Solar Cell |
Mono crystalline182*91mm, 120 (6*20) | ||
|
Framc |
/ | ||
|
GLASS |
/ | ||
|
Junction Box |
IP68,3diodes, MC4 compatible | ||
|
Output Cables |
4.0mm2(IIEC),300mm(+)/300mm(-)or Customized Iength | ||
Temperature characteristic
|
Pmax Temperature Coefficient |
-0.35 %/℃ |
|
Voc Temperature Coefficient |
-0.26%/℃ |
|
Isc Temperature Coefficient |
+0.047 %/℃ |
|
Operating Temperature |
-40~+85℃ |
|
Nominal module operation temperature |
45土2℃ |
Package
|
Packing Unit |
40HQ |
17.5m platform truck |
|
PCS/CTNS |
68 |
68 |
|
Qty of Package |
24 |
32 |
|
PCS/Packages |
1632 |
2176 |

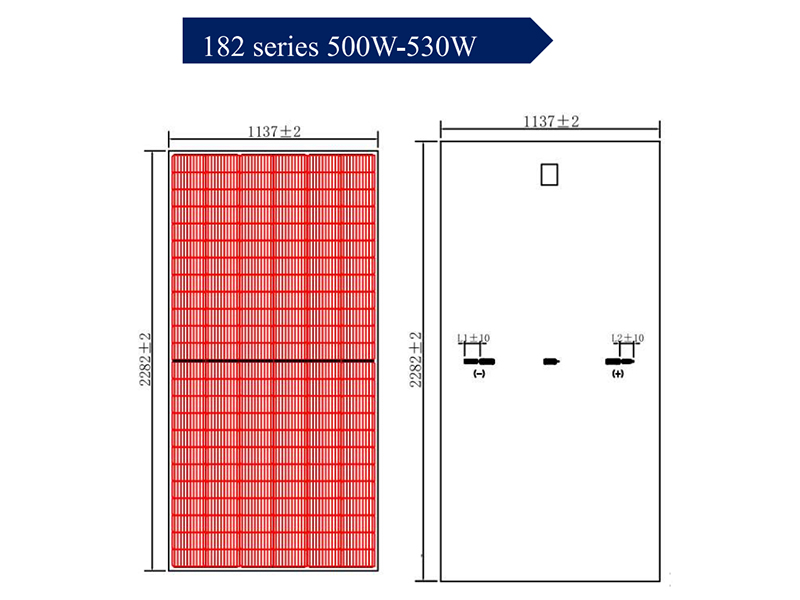

Mechanical Specifications
|
Extermal Dimension |
2282mm*1137mm | ||
|
Version |
Basic Version |
Enhanced Version |
High Performance Version |
|
Thickness |
3.0mm |
3.3mm |
3.6mm |
|
Weight |
8.7kg |
10.2kg |
11.7kg |
|
Solar Cell |
Mono crystallinc182*91mm, 144 (6*24) | ||
|
Frame |
/ | ||
|
GLASS |
/ | ||
|
Junction Box |
IP68,3diodes, MC4 compatible | ||
|
Output Cables |
4.0mm2(IEC),300mm(+)/300mm(-)or Customized Length | ||
Temperature characteristic
|
Pmax Temperature Coefficient |
-0.35%/* C |
|
Voc Temperature Coefficient |
-0.26%/ C |
|
Isc Temperature Coefficient |
+0.047%/ C |
|
Operating Temperature |
-40 ~+85* C |
|
Nominal module operation temperature |
45±2”C |
Package
|
Packing Unit |
40HQ |
17.5m platform truck |
|
PCS/CTNS |
68 |
68 |
|
Qty of Package |
20 |
30 |
|
PCS/Packages |
1360 |
2040 |
